Progressive Die Metal Stamping Services
High-Volume Precision Through Continuous Die Operations

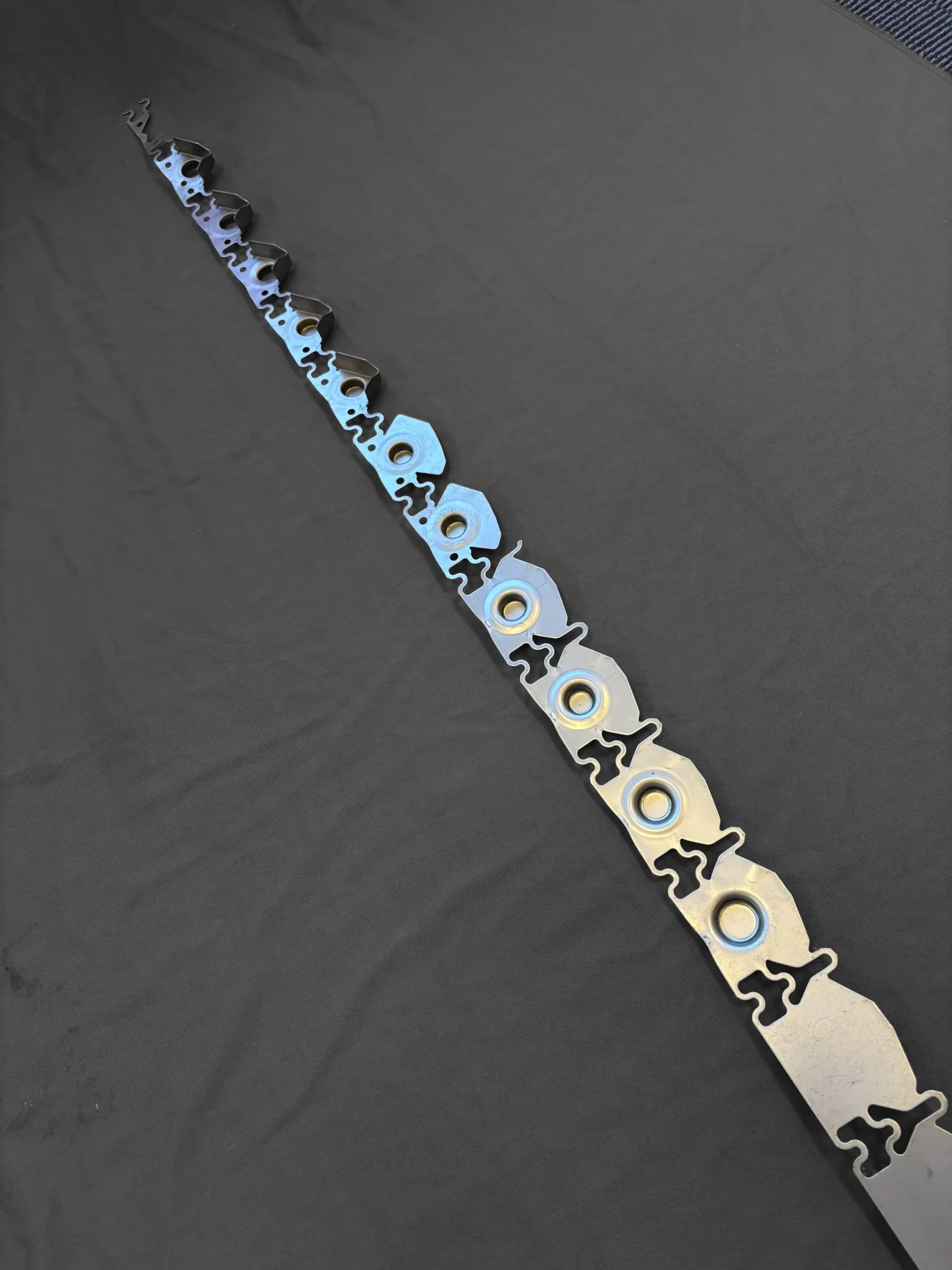

Progressive stamping at Jagemann Stamping is built for efficiency and repeatability. A strip of metal is fed through a die with multiple stations, and at each station the part undergoes a different operation — punching, bending, coining, or forming. By the time the strip reaches the final station, the completed part is cut free. This continuous process is ideal for high-volume production where precision and consistency are non-negotiable.
Why Choose Progressive Stamping?
Why Choose Progressive Stamping?
Progressive die metal stamping allows multiple features to be produced in one streamlined operation, reducing labor costs, shortening lead times, and maintaining tight tolerances. It’s a proven way to deliver high-quality stamped metal parts at scale, supporting automotive metal stamping, consumer products, electrical, and industrial markets.
With more than 100 years of combined engineering expertise, Jagemann has the depth to handle custom progressive metal stamping projects that require accuracy, speed, and durability.
Capabilities and Materials for Progressive Stamping

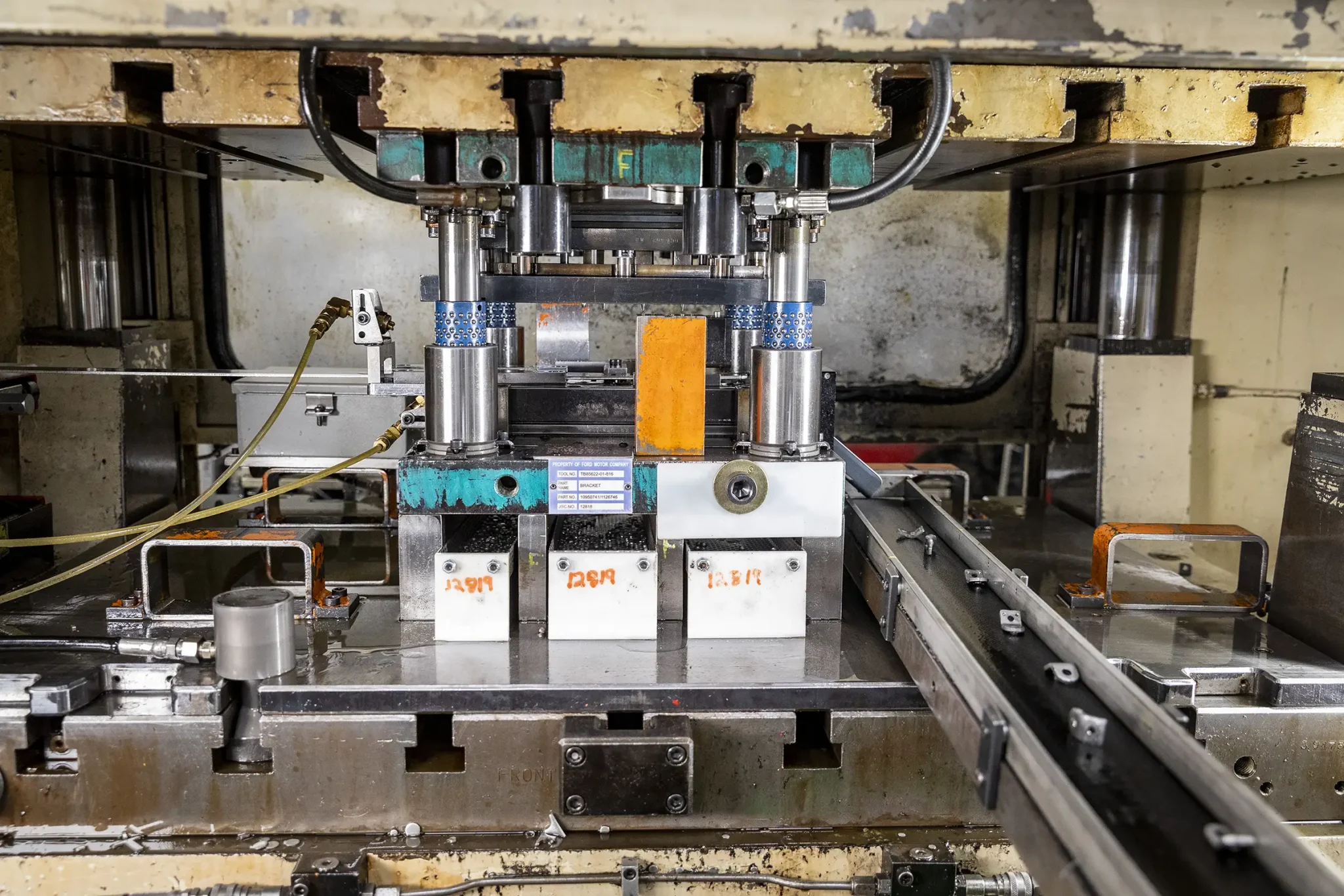

Our progressive stamping equipment and processes are designed to run efficiently across a wide range of applications:
- Press range: 15 to 330 tons
- Raw material thickness: 0.008″ to 0.250″
- Materials processed:
- Stainless Steel: 304, 305, 316, 430, 434
- Aluminum: 3003, 5052, 6061
- Cold Rolled Steel: 1008, 1010
- High Carbon Steel: 1035
- HSLA (High-Strength Low-Alloy) Steel
- Nickel and Pre-plated Steel
- Galvannealed Steel
- Brass: 80-20, 85-15, 70-30
- Copper
- Multitude or Variety of others

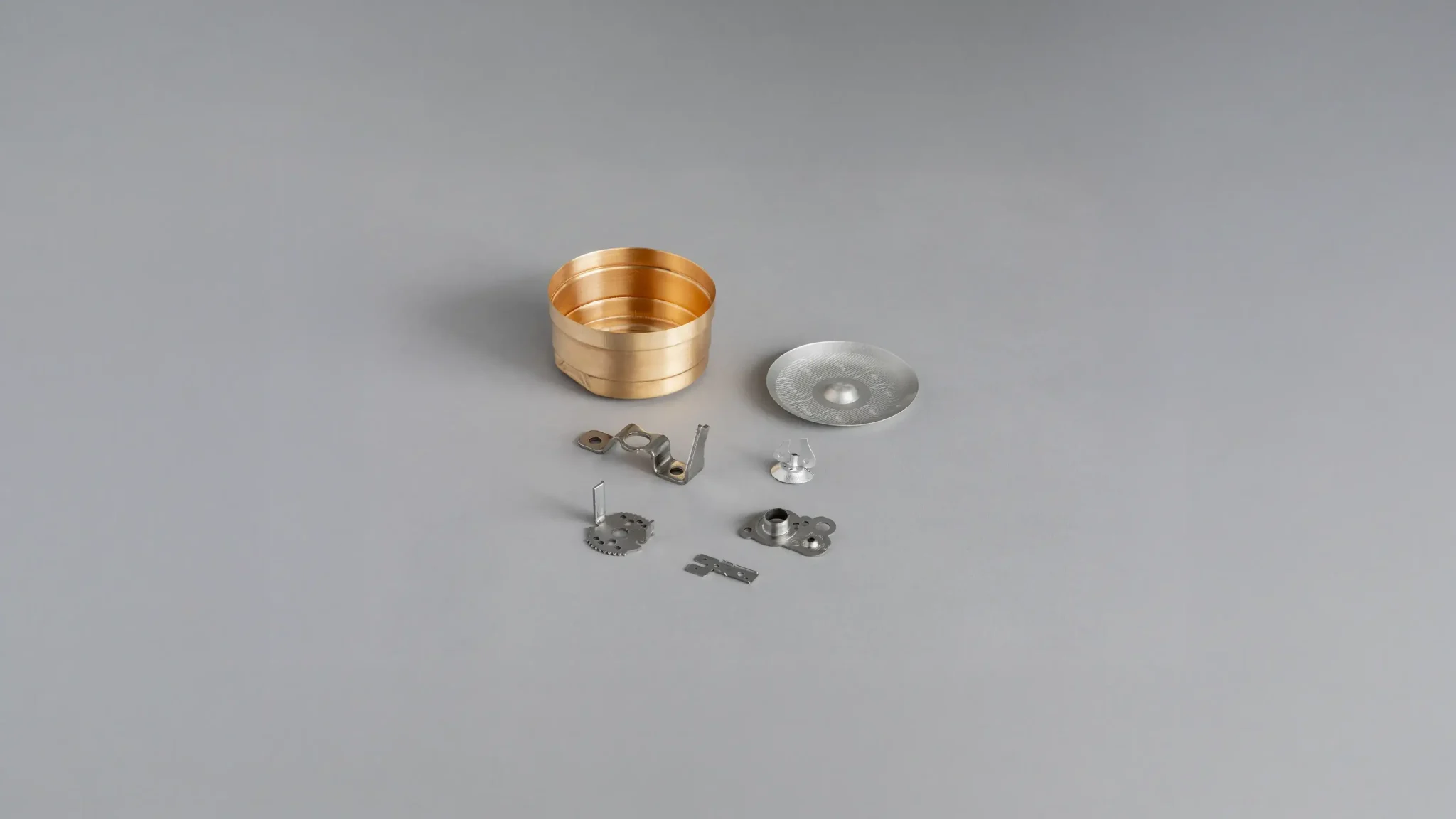

A Partner in Precision Metal Stamping
As a full-service metal stamping manufacturer, Jagemann combines progressive stamping with deep draw, fineblanking, and value-added services to deliver complete solutions. With an in‑house toolroom supporting custom tooling, maintenance, and rapid adjustments, we ensure maximum precision and uptime. Our customers count on us for high-volume progressive metal stampings that meet strict industry requirements without sacrificing speed or consistency.
Let’s Get To Work
Ready to see how our progressive stamping capabilities can support your next project?
